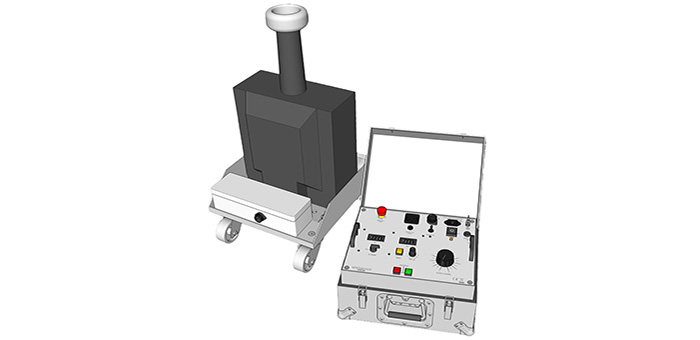

The KV50-20D Mk2 Test System is a compact & portable high voltage AC test system designed for insulation testing. It’s ideal for both development and routine testing of electrical insulation systems. The system includes a control unit and a separate resin cast high voltage transformer, connected by a 5-meter control cable.

The control unit, housed in a rugged aluminium case, offers comprehensive control, metering, and protection features. Digital meters provide accurate readings of output RMS voltage and current. A variable electronic trip allows flexible adjustment of the trip current between 10% and 110% of the rated output, ensuring precise control during testing.
